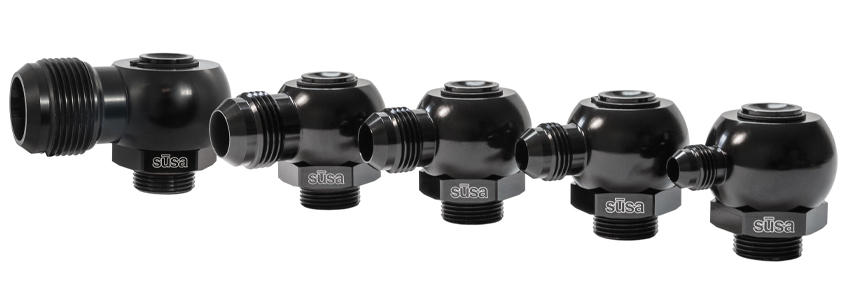

sūsa ProLine Banjo Fittings

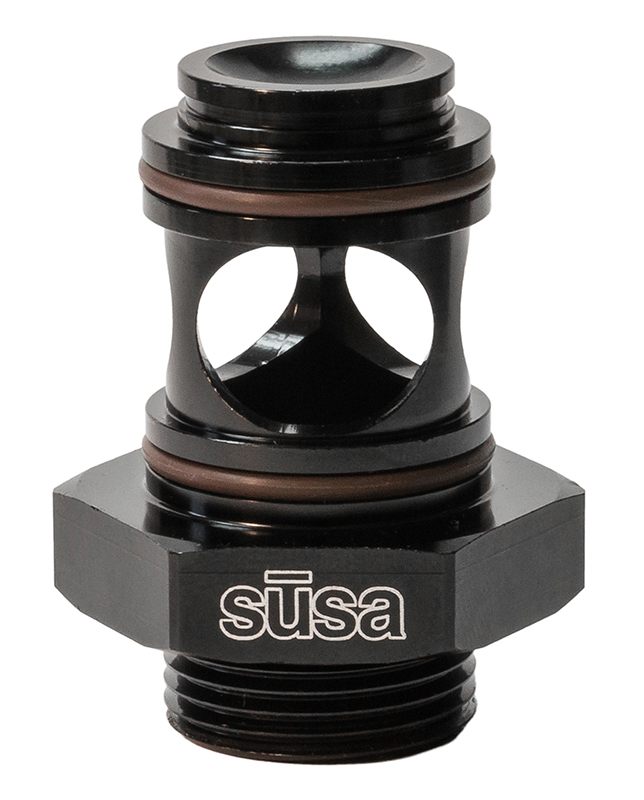

Banjo bolt port design
offers maximum flow
sūsa ProLine Direct-port Adapter Fittings
sūsa ProLine banjo fittings install directly into Setrab ProLine oil coolers or any M22x1.5 port to offer the tightest 90º turn available in an AN adapter. The sūsa banjo fitting is clockable a full-360º after installation to help simplify even the most complicated plumbing problem.
Designed with incredibly generous porting to offer the greatest possible flow characteristics available in the most compact and versatile 90º connection.
Produced in aircraft-quality aluminum and hard-anodized to stand up to the test of demanding performance environments, whether in a race environment or a high-performance street environment.
Items intended for off-road use only.
| AN Size | Dimensions | Part Number | |
|---|---|---|---|

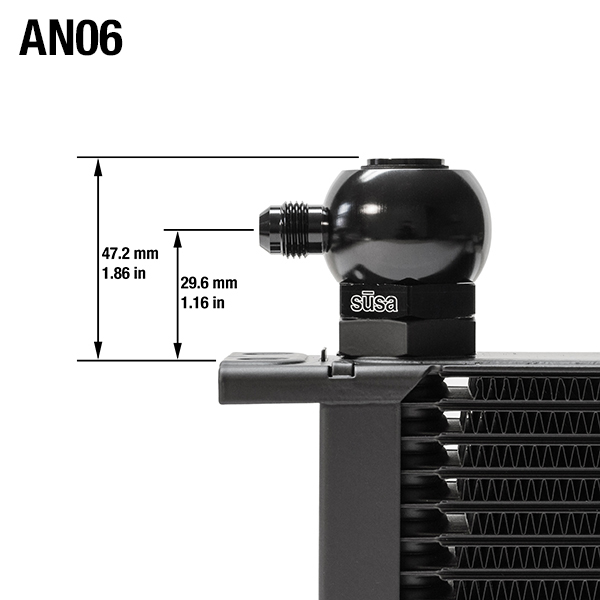

| –6 |
|

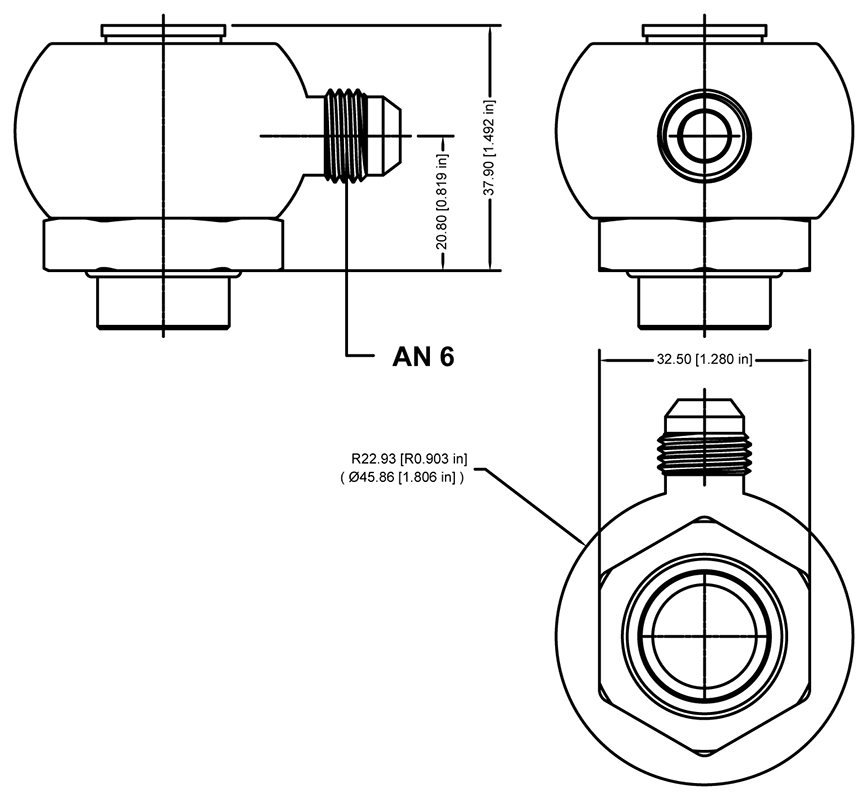

AN06 banjo |
22-M22BJAN06-90 |

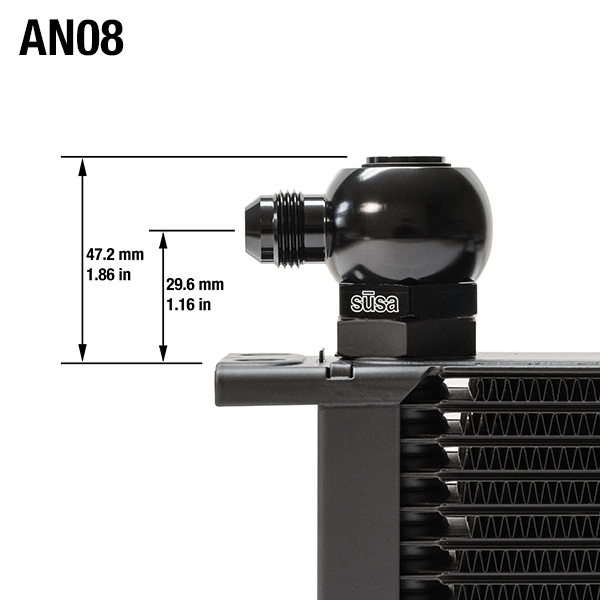

| –8 |  |

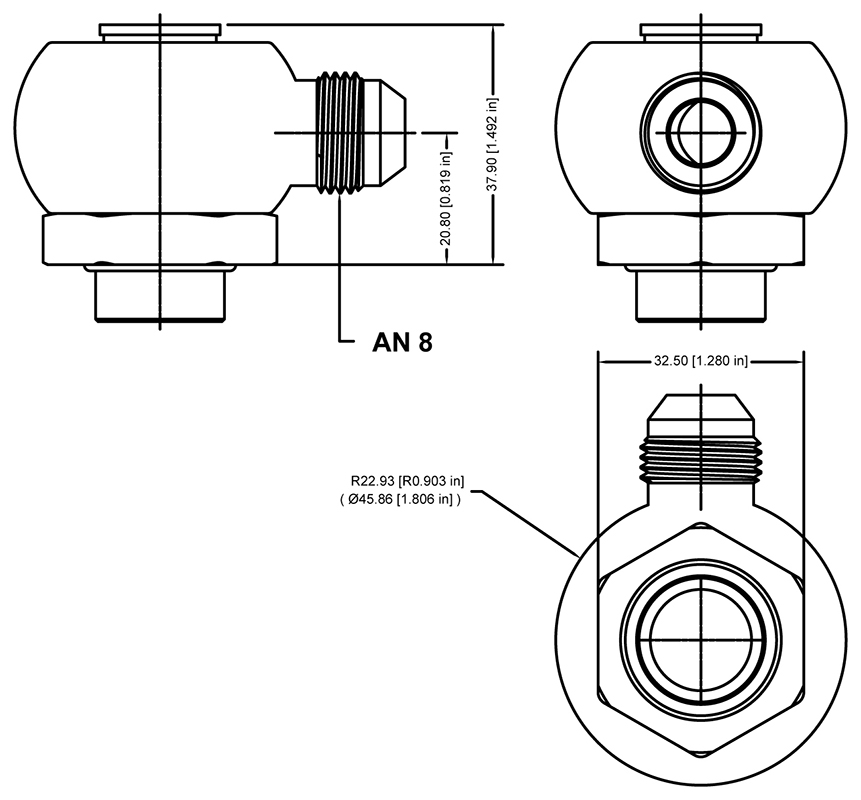

AN08 banjo |
22-M22BJAN08-90 |

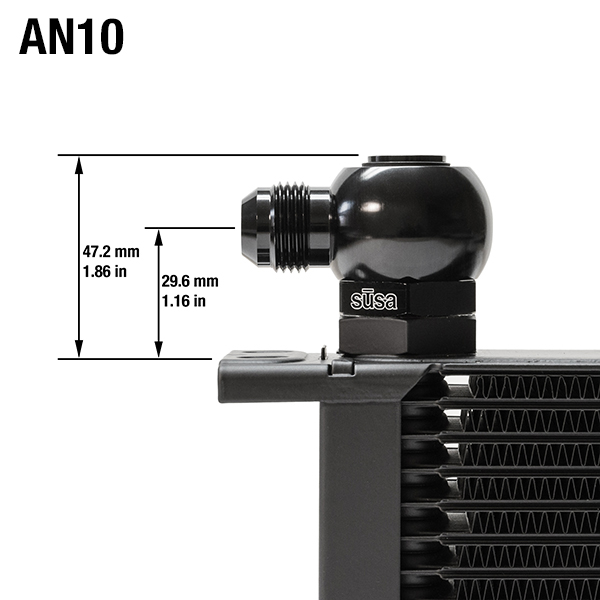

| –10 |  |

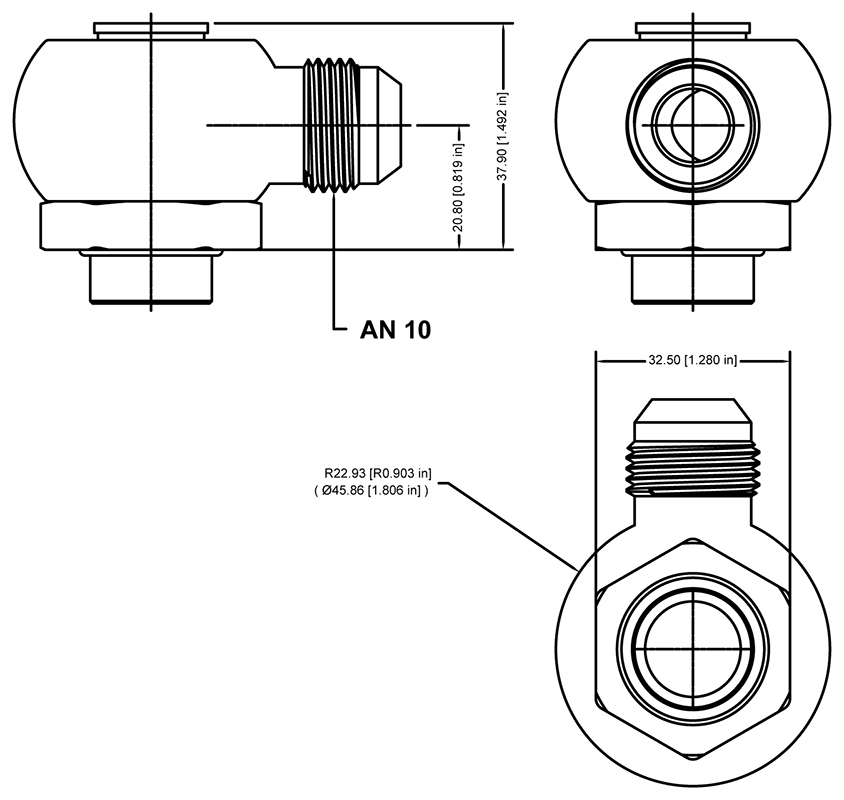

AN10 banjo |
22-M22BJAN10-90 |

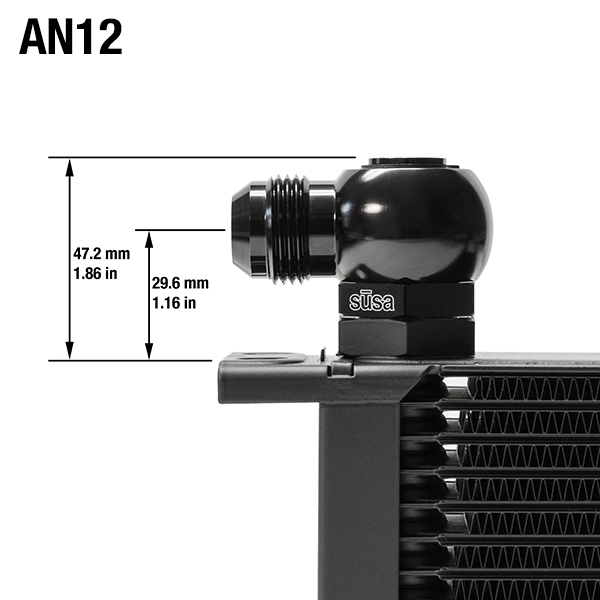

| –12 |  |

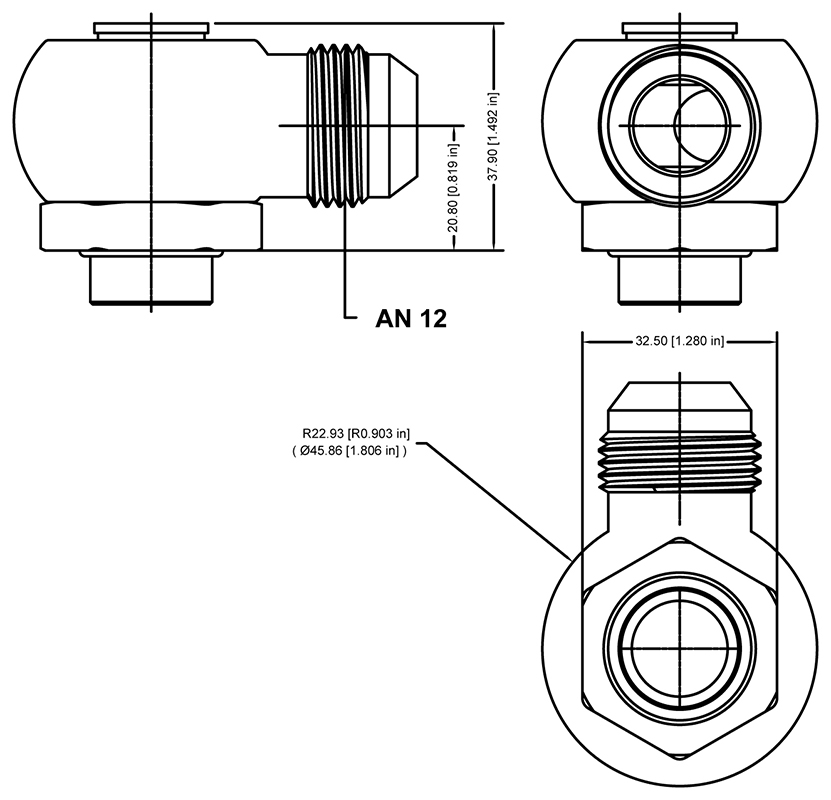

AN12 banjo |
22-M22BJAN12-90 |
| –16 |

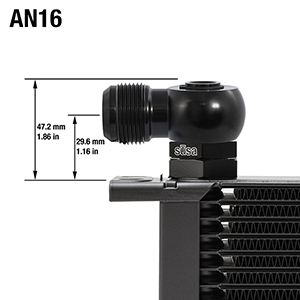

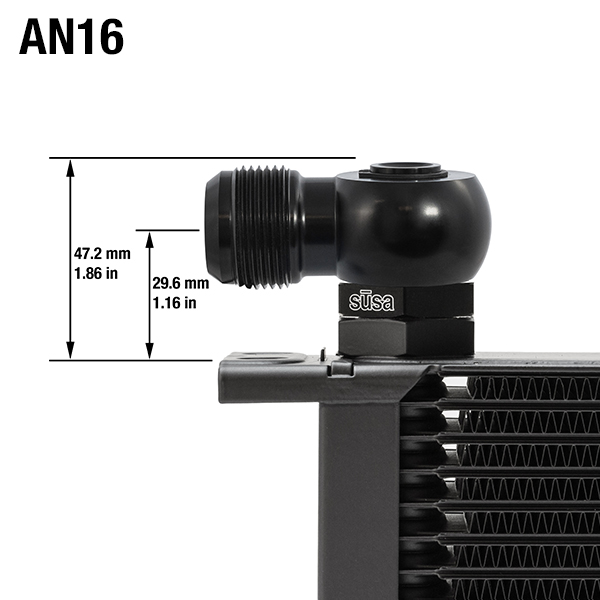

AN16 banjo |
22-M22BJAN16-90 | |

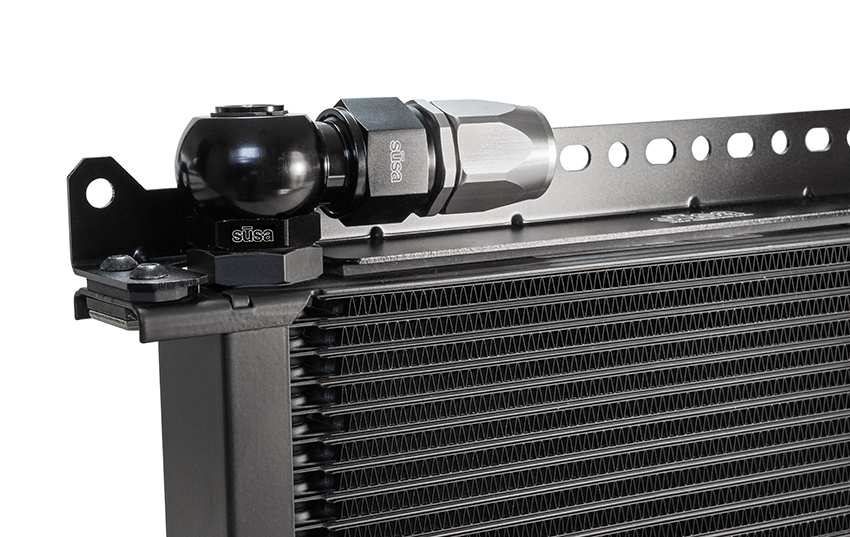

Part #s shown (sold separately):
- 22-M22BJAN12-90 banjo fitting
- 22-AN12RU12-00 hose end
- 23-9002 mounting bracket set
- 50-920-7612 Setrab ProLine STD oil cooler
Elegance & Compatibility
Engineered for high flow volume and minimal restriction in the tightest 90º bend, the sūsa banjo fitting by design complements the entire range of sūsa hose ends, mounting bracketry, and accessories for the Setrab ProLine STD range of oil coolers.
Features signature ProLine captured o-ring sealing design for direct-port installation on all Setrab ProLine oil coolers.
