Setrab ProLine Fanpacks
Setrab ProLine Fanpacks combine the already high-performing and versatile heat exchange characteristics of the range of Setrab ProLine oil coolers with high-volume, low-profile fans and robust fan shrouds to create a cooling package that is unparalleled in performance, versatility, and ease of installation.
1-series Fanpacks |
Narrow width: 8.27 inches | |
6-series Fanpacks |
Medium width: 13 inches | |
9-series Fanpacks |
Wide width: 16 inches | |
| Part no. | Width (in.) | Height (in.) | Depth (in.) | Fan | Wt. (lbs.) | ||
|---|---|---|---|---|---|---|---|
| Core | Total | Core | Total | incl. fan | |||

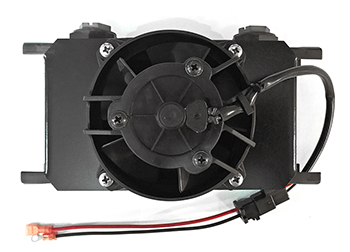

| FP113M22I 1-series, 13 rows |
6.50 | 8.27 | 3.94 | 4.24 | 4.38 | 12V, 150cfm | 2.85 |
FP119M22I |
6.50 | 8.27 | 5.75 | 6.10 | 4.38 | 12V, 342cfm | 3.55 |

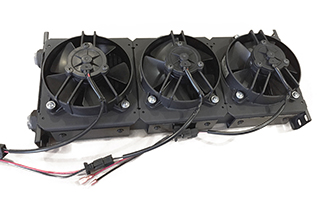

| FP160M22I 1-series, 60 rows |
6.50 | 8.27 | 18.31 | 18.66 | 4.38 | 12V, 1026cfm | 13.5 |

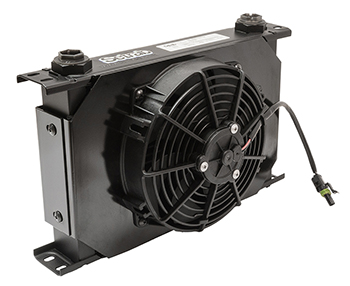

| FP625M22I 6-series, 25 rows |
11.38 | 12.99 | 7.60 | 7.95 | 4.38 | 12V, 331cfm | 5.85 |
| FP634M22I 6-series, 34 rows |
11.38 | 12.99 | 10.25 | 10.60 | 4.38 | 12V, 708cfm | 8.95 |

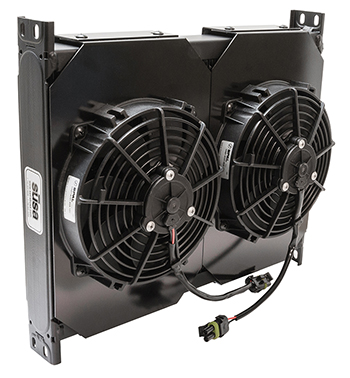

FP650M22I |
11.38 | 12.99 | 15.31 | 15.66 | 4.38 | 12V, 662cfm | 11.40 |
| FP910M22IX2 (dual) 9-series, 10 rows |
14.50 | 16.00 | 6.00 | 6.70 | 4.38 | 2x 12V, 684cfm | 7.55 |
| FP920M22I 9-series, 20 rows |
14.50 | 16.00 | 6.00 | 6.35 | 4.38 | 2x 12V, 684cfm | 7.20 |
| FP920M22I-2P 9-series, 20 rows 2-pass |
14.50 | 16.00 | 6.00 | 6.70 | 4.38 | 2x 12V, 684cfm | 7.25 |
| FP948M22I 9-series, 48 rows |
14.50 | 16.00 | 15.13 | 15.48 | 4.75 | 12V, 1242cfm | 15.15 |
| FP980M22I-4P 9-series, 80 rows |
14.50 | 16.00 | 24.50 | 25.50 | 4.75 | 2x 12V, 2484cfm | 25.8 |
